NanoAutomation - A Design Philosophy to Achieve Nanometer Precision Faster


While nanopositioning systems are not quite commodities, yet, they have made the transition from exotic "toys" for research to well accepted tools for manufacturing, test and inspection in all high-tech industries.

When PI engineers designed nanopositioning systems with higher and higher precision they learned that in today's demanding applications better resolution alone does not solve the customer's problem.

NanoAutomation® takes nanopositioning to the next level. It defines solutions that perform exceptionally well in real world applications improving speed, stability, throughput and quality. NanoAutomation® means achieving nanometer and sub-nanometer level precision faster, reapeatedly. This philosophy optimizes all parts of the nanopositioning system with respect to the individual application.

Read the NanoAutomation Blog

NanoAutomation® is the result of thousands of nanopositioning solutions designed in the last 40 years.


NanoAutomation® Examples

Ultra-Low-Inertia Parallel-Kinematics Designs
Benefits: Lower inertia, smaller footprint, no moving cables, superior dynamic behavior, active multi-axis trajectory control on a sub-nanometer level.



Serial-Kinematics "Stacked" Stage 6 DOF MicroPositioning System (L) and Parallel Kinematics Hexapod Robot 6 DOF MicroPositioning System (R).


Six-axis parallel kinematics drive principle of F-206 hexapod. The parallel kinematics design with constant-length struts reduces the moved virtually to that of the light-weight platform. This is why the F-206 can react and settle significantly faster than stacked serial kinematic systems.

F-206.S six-axis flexure hexapod.

More information on Parallel-Kinematics


Serial Kinematics vs. Parallel Kinematics Piezo Flexure Nanopositioning Systems

Stacked Serial Kinematics XY Flexure Nanopositioning System
  • Simple Design, but:
  • Slower response (lower stage carries inertial mass of upper stage)
  • Non-symmetric resonant frequencies (lower stage is slower than upper stage, requires different servo settings).
  • Orthogonality is mounting-angle dependant.
  • Runout in XY cannot be monitored/ compensated by the sensor in other axis.
Nested Serial Kinematics XY Flexure Nanopositioning System
  • Thinner and better response than Stacked Serial Kinematics, but no other advantages.
Parallel Kinematics Flexure Nanopositioning System (Three-axis stage shown)
  • Active Trajectory Control: All motion is kept inside the servo loop.
  • Same ultra-low inertia for X and Y motion, providing higher responsiveness and axis-independent performance.
  • Excellent, mounting independent orthogonality.
  • Additional rotation axis (Theta Z) feasible with 3 actuators / sensors and digital controller.

Advanced Flexure Guiding Systems

Benefits: Superior multi-axis trajectory control, true parallel motion, high stiffness, ultra-lightweight, no stiction/ friction, no maintenance, no lubricants, no air, UHV compatible.

More on Excellent Guiding Accuracy with Flexures Here.
Read about Single-Module Parallel-Metrology Nanopositioning Systems.
Why Parallel Metrology Matters in Nanopositioning System Design.
Read on about Piezo Flexure Nanopositioners and Scanners
P-780

Zero-runout flexure guiding system. No friction, stiction and no lateral runout. True parallel motion.

Advanced Digital Controllers and Control Algorithms

Nanopositioning systems are mostly used in dynamic mode (scanning, tracking etc.) Static resolution figures become meaningless here. The key performance parameters of the positioning system and the surrounding components are tracking error, following error, dynamic linearity and stability, responsiveness, vibration and settling time. PI offers a number of a advanced digital controllers and algorithms that eliminate tracking errors, self-generated vibrations and vastly improve dynamic performance and throughput.

Click Here for Information on Faster Settling.
See How DDL Improves Scanning Linearity up to 1000-Fold.
An Example of an Ultra-Fast Positioning Controller in a Track Following Servo Disk Drive Application.

Variety of digital piezo controllers.

Signal pre-shaping eliminates self-generated vibration, increases throughput, scanning speed, and accuracy.

HyperBit

Benefits: Higher Resolution at no Additional Cost, Higher Stability. HyperBit, a newly-patented technology (US Patent# 6,950,050), takes advantage of the fact that as fast as piezoelectric actuators can respond, DACs are even faster. By performing high-speed time-domain modulation of the least-significant bits of the DAC at a rate at which the piezo system cannot respond to, many additional bits of positioning resolution can be achieved with no loss in bandwidth or stability.

More on HyperBit

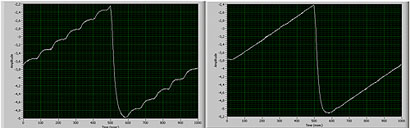

High-resolution interferometry of raster scan, of amplitude ~10•LSB. (Left) Bitwise step activity of DAC can be seen. (Right) HyperBit adds additional resolution, improving the dynamic accuracy of the scan

Two Plate Capacitive Position Sensors with Ultra-Low Noise, Auto-Linearization Electronics

Benefits: Direct output metrology, measures position directly where motion occurs. Non contact, no friction, highest resolution and lin-
earity of any commercially available sensor. UHV compatible.

More on Capacitive Position Sensors and Nanopositioning Stages.
D-050 Capacitance Sensors
Two plate capacitance sensors.

Piezo nanopositioning stage making 0.3 nm steps, measured with PI capacitive sensor (lower curve) and with a laser interferometer. The capacitive sensor provides significantly higher resolution than the interferometer.

Piezo Nanopositioning Systems with AutoCalibrate Function

Benefits: Improves peerformance. Reduces downtime.
The calibration data is stored right in the connector of the Nanopositioning system itself. Controller and nanomechanism can be interchanged for upgrades or maintenance at any time.

Read More about Advanced Control Algorithms
P-772.1CD Peizo Nanopositioning/Scanning Stage
Miniature Piezo Nanopositioning / scan-
ning stage with AutoCalibrate feature.

PI Piezo systems are equipped with high performance connectors for ultra-low noise, and EMI compliance.

High-Speed Fiber-Link, PCI-Bus Interface

Benefits: Higher command throughput, insensitivity to electrical noise, 50+ meter distance between controller and computer possible.

Reference Class Digital Servo Controller with High Speed Interface
High Speed Fiber Link Interface
E-753 High Speed Controller

E-761 digital piezo controller in PCI-board format.

High Performance Piezo Ceramics

Benefits: Longer lifetime under extreme conditions, higher dynamic performance, UHV compatible.
PI is the only Nanopositioning Systems manufacturer with the capability to develop and produce Piezo ceramics. The patented PICMA® Piezo Actuators are the only ceramic encapsulated piezo multilayer actuators.

Learn More about PICMA® Piezo Actuators.

Piezo Acutators on Mars Rover

PICMA® multilayer piezo actuators are currently available with cross-sections
of 2 x 3, 3 x 3, 5 x 5, 7 x 7 and
10 x 10 mm.

Variety of standard and custom PICA™-Stack piezo actuators, for high force applications.

PILine® High-Speed Ultra Sonic Drives
PILine® motors are based on a novel, patented ultrasonic drive developed by PI. At the heart of the system is a piezoceramic plate which is excited to produce high-frequency eigenmode oscillations. A friction tip attached to the plate moves along an inclined linear path at the eigenmode frequency. Through its contact with the friction bar, it drives the moving part of the mechanics forward or backwards. With each oscillatory cycle, the mechanics executes a step of a few nanometers; the macroscopic result is smooth motion with a virtually unlimited travel range.

More on PILine® Miniature Ultrasonic Piezomotors

Ultrasonic piezo motors can provide forces to 50N.

Principle design of a PILine® ultrasonic piezomotor-driven translation stage.


NanoAutomation®: Achieve Nano-Precision Faster
